Loop Modes and Frame Stepping

OpenRV Web provides three loop modes that control what happens when playback reaches the end of the frame range. Frame stepping offers precise single-frame navigation for detailed review.

Loop Modes

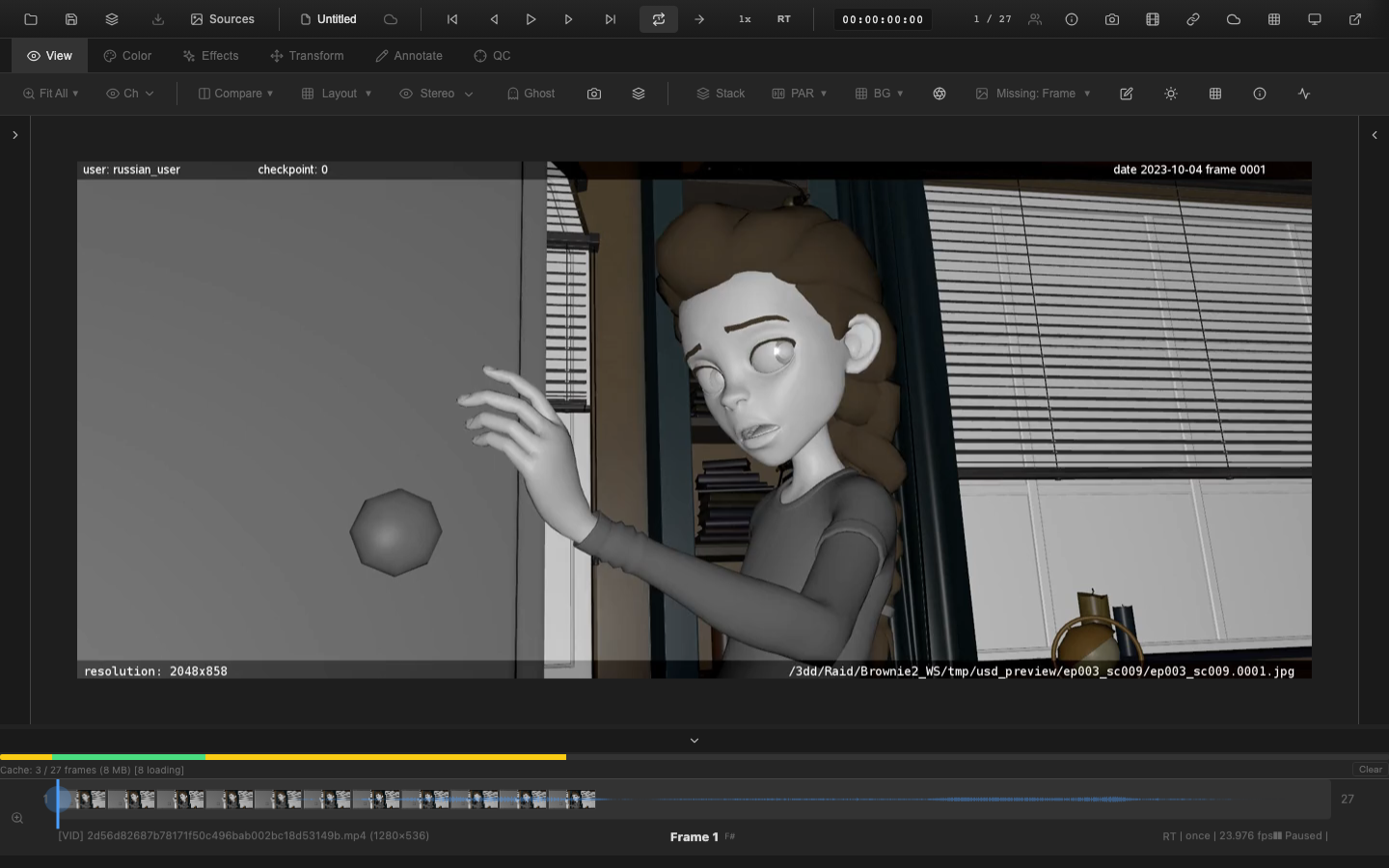

Cycle through loop modes by clicking the loop mode button in the header bar. The modes cycle in this order: Loop, Ping-pong, Once.

Loop Mode

Icon: Continuous arrows (repeat)

Playback wraps continuously. When the playhead reaches the out point, it jumps back to the in point and continues playing. In reverse, reaching the in point jumps to the out point. This is the default mode, suitable for reviewing a shot or sequence repeatedly.

Ping-Pong Mode

Icon: Bidirectional arrows (shuffle)

Playback reverses direction at boundaries. When the playhead reaches the out point, playback direction changes to reverse and the playhead moves backward. When it reaches the in point, direction changes back to forward. The direction button in the header bar updates automatically when ping-pong reverses.

This mode is useful for studying motion and transitions by watching them play forward and backward continuously.

Once Mode

Icon: Single arrow (repeat-once)

Playback stops when it reaches the boundary. In forward playback, the playhead pauses at the out point. In reverse, it pauses at the in point. The play button returns to its ready state after stopping.

Loop Mode Indicator

The timeline status bar displays the current loop mode alongside the playback state and FPS. The format is:

Playing | 24/24 fps | loop

The loop mode button in the header bar shows an icon and label (e.g., "Loop", "Ping", "Once") and has a minimum width of 70px.

In/Out Point Integration

Loop modes respect the defined in/out point range. Playback is constrained to play only between the in and out points. If no in/out points are set, the full frame range is used.

Action	Shortcut
Set in point	I or [
Set out point	O or ]
Reset in/out	R
Go to in point	Home
Go to out point	End

Frame Stepping

Frame stepping moves exactly one frame at a time, regardless of playback state.

Action	Shortcut
Step forward one frame	Right Arrow
Step backward one frame	Left Arrow

Frame stepping respects in/out points. Stepping forward beyond the out point clamps to the out point. Stepping backward beyond the in point clamps to the in point.

The frame increment is configurable (default: 1). When set to a value greater than 1, each step advances by that many frames. This is controllable through the scripting API:

// Step forward by current increment
window.openrv.playback.step();

// Access current frame
const frame = window.openrv.playback.getCurrentFrame();

Sub-Frame Interpolation

OpenRV Web includes a sub-frame interpolation feature that alpha-blends between adjacent frames for smooth slow-motion playback. When enabled, fractional frame positions produce a weighted blend of the two nearest frames rather than snapping to the nearest whole frame.

Sub-frame interpolation is disabled by default and can be toggled through the session settings.

Direction Toggle

Press Up Arrow to toggle between forward and reverse playback. The direction button icon in the header bar updates to show the current direction. Toggling direction during playback takes effect immediately and resets the frame timing to prevent jumps.

In ping-pong mode, the automatic direction reversal at boundaries also updates the direction button.

Playlist Loop Modes

When using the playlist feature, a separate loop mode system applies:

Mode	Behavior
No Loop	Stop at end of playlist
Loop Clip	Repeat the current clip
Loop All	Restart from the first clip after the last

Playlist loop modes are configured in the Playlist panel (Shift+Alt+P).

State Persistence

Loop mode, playback speed, and direction are preserved in the session state. They persist across frame changes and tab switches. When saving a project (.orvproject), the loop mode is included in the playback state and restored on load.

---
